MATCH PP 8W-Q 4x3 Ohm

Name: MATCH PP 8W-Q 4x3 Ohm
Brand: Bilutstyr Norge
Price: 890.00 NOK
Availability: InStock

890,00 NOK

Salg Utsolgt

Inkludert avgifter. Frakt beregnes ved kassen.

Antall

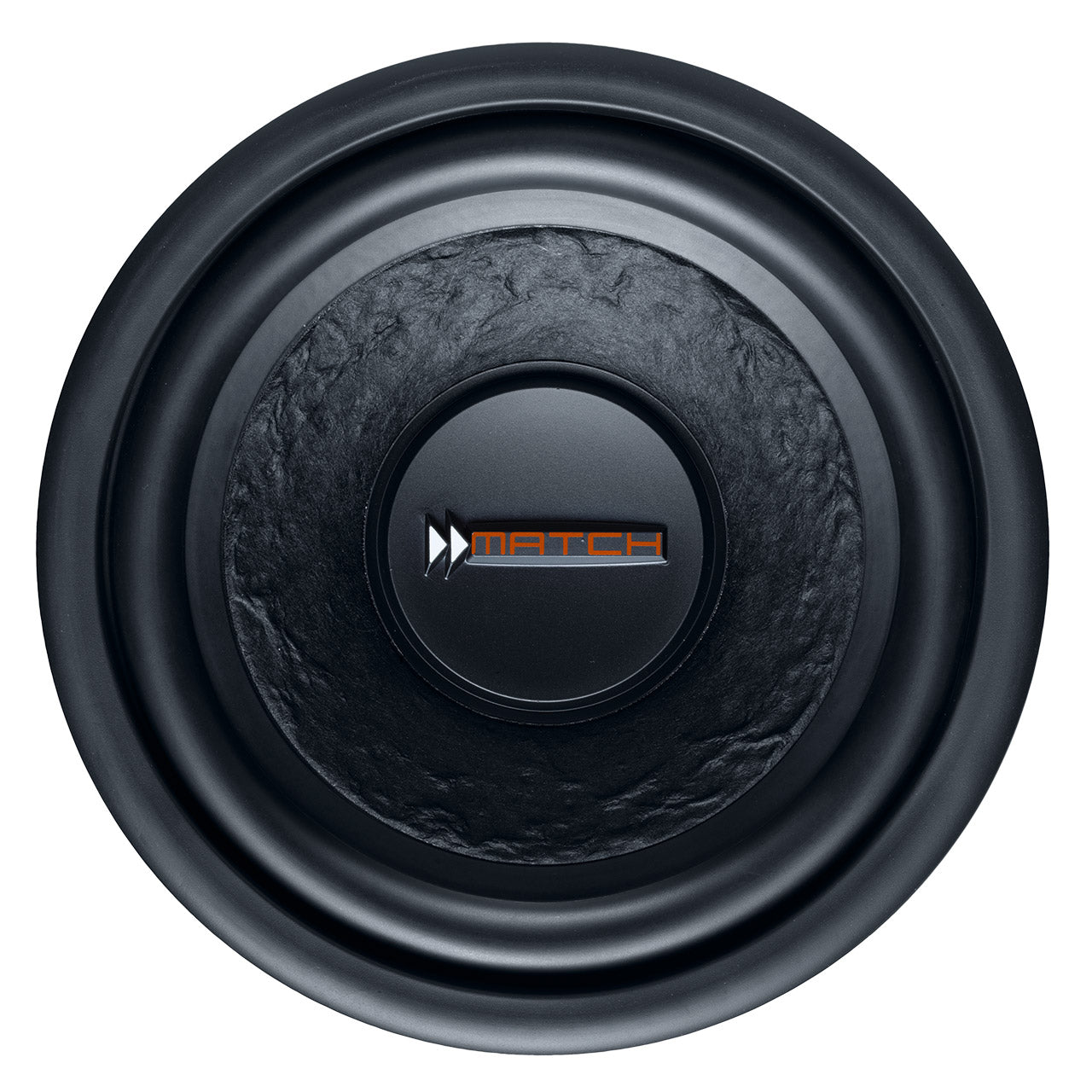

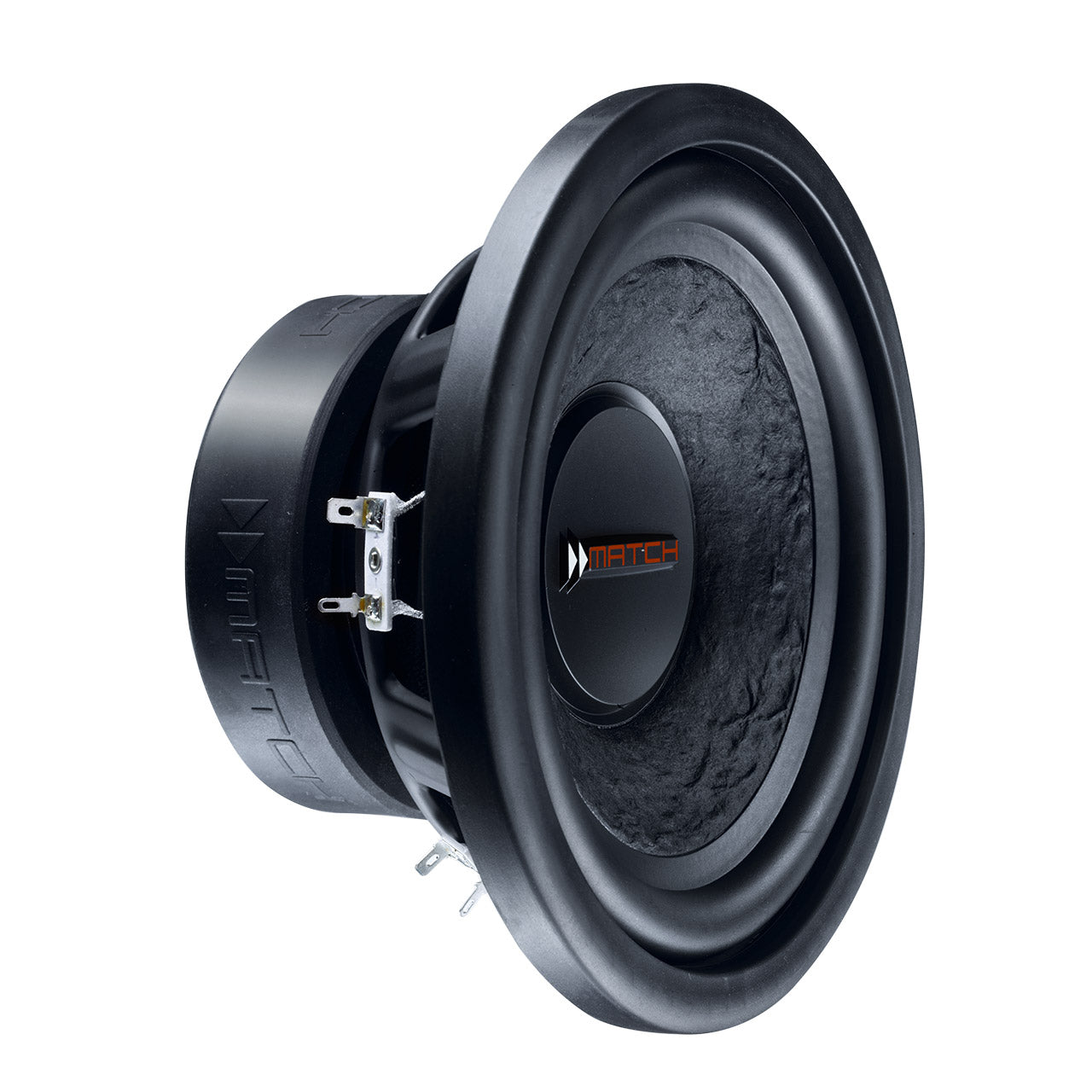

8” / 200 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
Extremely stiff hand-scooped paper cone for maximum sound pressure
Double ventilated voice-coil for minimum compression effects
Powerful magnet for compact-sized vented enclosures
Optimized for the perfect interaction with MATCH Plug & Play amplifiers

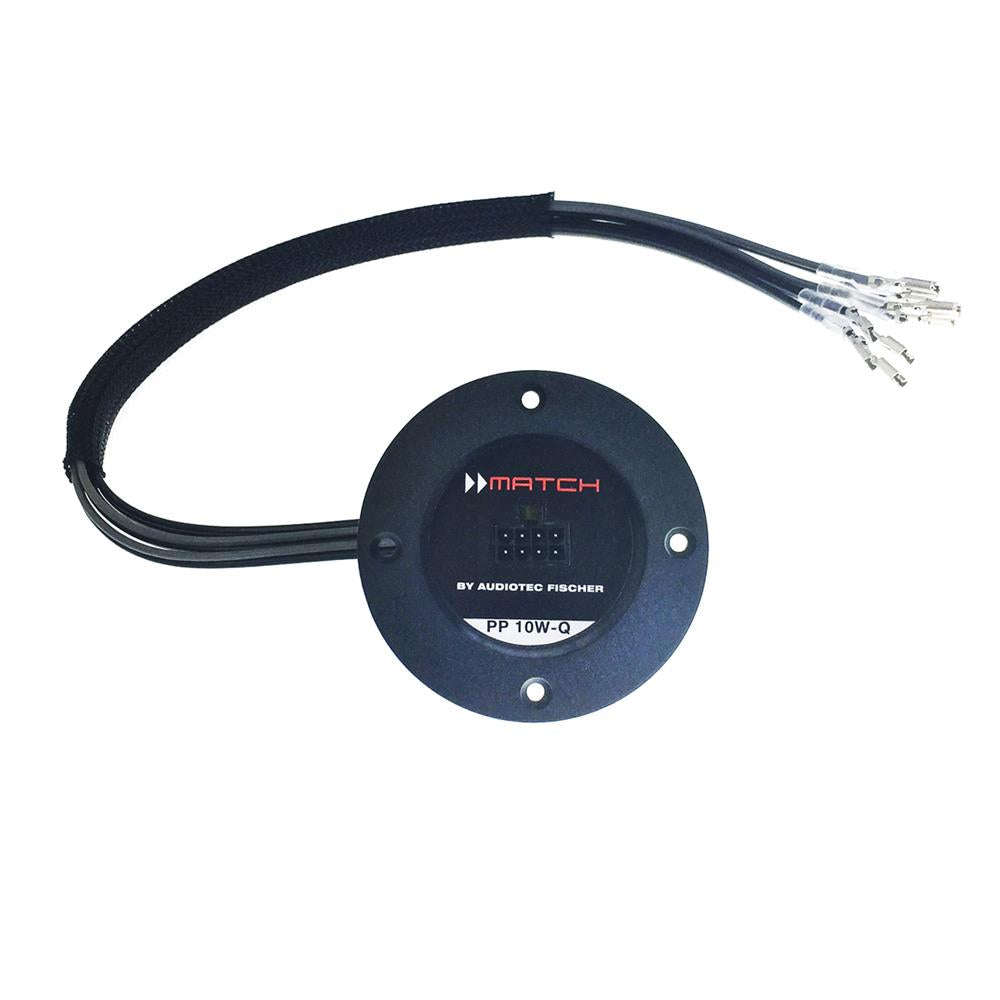

Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
Power RMS / max. P 200 / 400 Watts
Impedance Z 4 x 3 Ohm
Resonance frequency Fs 37 Hz
Total Q factor Qts 0.51
Equivalent air volume Vas 23 L
Force factor B*I 7.5 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area Sd 222 cm²
Moving mass Mms 53 g
Voice coil diameter ø 50.8 mm
Outer diameter ø 212 mm
Installation diameter ø 183 mm
Installation depth 105 mm
Vented box Net volume 10 L
Port diameter ø 60 mm
Port area 25 cm²
Port length 25 cm
Port tuning frequency Fb 47 Hz
Lower limiting frequency (-3dB) 45 Hz
